2FD 平頭鎢鋼鑽頭

商品編號:2FD
2xD 平頭鎢鋼鑽頭,規格:3mm~16mm,塗層:nACRo/ ZrN-A
  • 平頭鎢鋼鑽頭 Flat Drills Series
    ►2FD ►4FD ►3FDC ►5FDC

    ♦尺寸範圍 Size Range: Ø3-16mm
    ♦鑽尖角度 Point Angle: 180º


    詳細規格下載 Spec. Download
    切削參數下載 Cutting Condition Download​


    Carbide Drills_頁面_60

    Carbide Drills_頁面_61


    主要特色 Main Feature:

    1. 特殊溝型設計Special geometry design優異的排屑能力,有效斷屑及強化的刃口
    -Provides superior chip evacuation;
    -Allows break-chips effectively;
    -Enhance the cutting edge.

    2. A. 防崩角使其剛性更好 -保護尖角並具有出色的抗崩性Tip protection for Stronger Corner -Protect the edge and with excellent chipping resistance.
        B. 光滑的螺旋切削刃口 Smooth surface of the helix cutting edge.
        C. 雙刃帶設計4FD /3FDC / 5FDC -光潔的孔壁,讓孔的精密度更高 Double margin for 4FD /3FDC / 5FDC -Allows high precision straight cutting.

    3. 多功能高效能用途High Efficiency Drilling in Various Type of Machining
    適用於多種鑽孔應用,如傾斜表面、曲面、平底孔、偏心孔等
    Applicable for a multitude of drilling applications such as inclined surface, curved surface, flatbottom
    hole, eccentric hole, and more.



    應用材質 Application
    Coating塗層 Carbon steel
    碳素鋼

    Alloy steel
    合金鋼
    Pre-harden steel
    ~45HR
    預硬鋼~45HR
    High-hardened
    ~50HRC
    高度硬鋼~50HRC
    High-hardened
    ~55HRC
    高度硬鋼~55HRC
    High-hardened
    ~60HRC
    高度硬鋼~60HRC
    High-hardened
    ~65HRC
    高度硬鋼~65HRC
    Stainless steel
    不鏽鋼
    Cast iron鑄鐵 Copper ally
    銅合金/銅
    Alumiunm ally
    鋁合金
    Titanium alloy

    鈦合金/

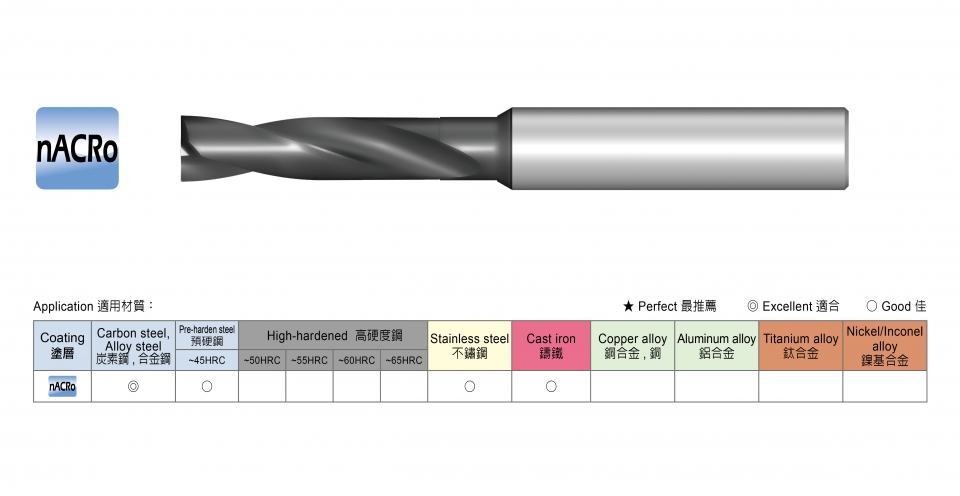

    nACRo  ○          ○

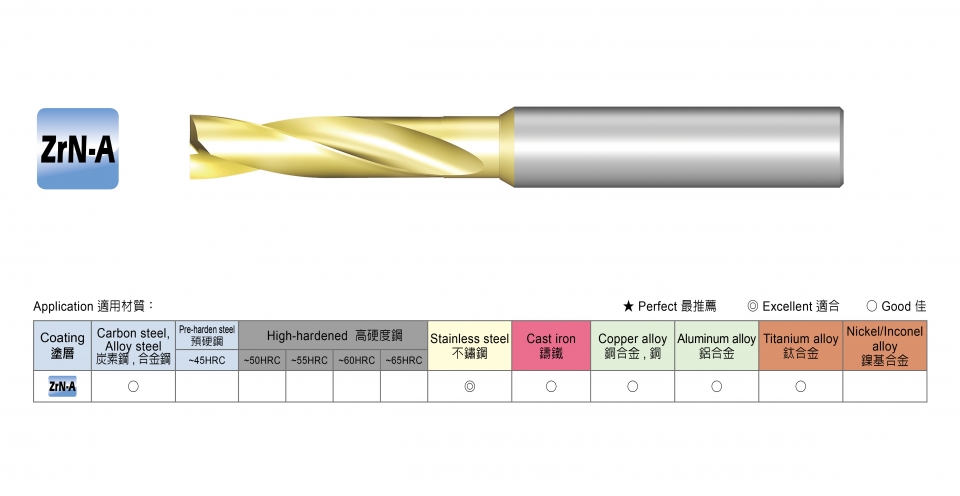

    ZrN-A

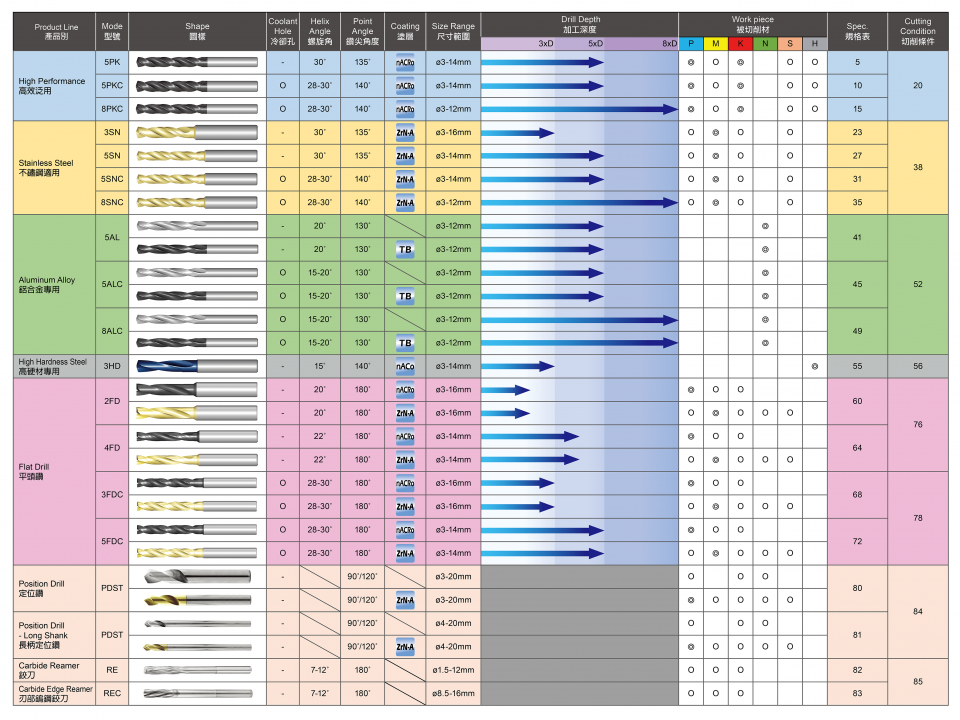

    Carbide Drill Index
