8ALC 內冷鋁合金專用鎢鋼鑽頭

商品編號:8ALC

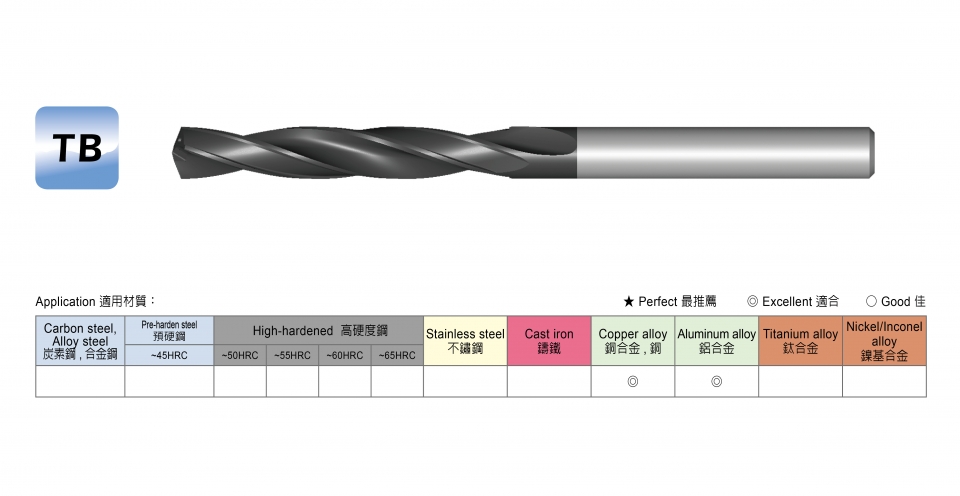

8xD 內冷鋁合金專用鎢鋼鑽頭,規格:3mm~12mm,塗層:無塗層/ TB
  • 內冷鋁合金專用鎢鋼鑽頭 Carbide Drill With Coolant Hole For Aluminum Application
    ►5AL ►5ALC ►8ALC

    ♦尺寸範圍 Size Range: Ø3-12mm
    ♦鑽尖角度 Point Angle: 130º


    詳細規格下載 Spec. Download
    切削參數下載 Cutting Condition Download​

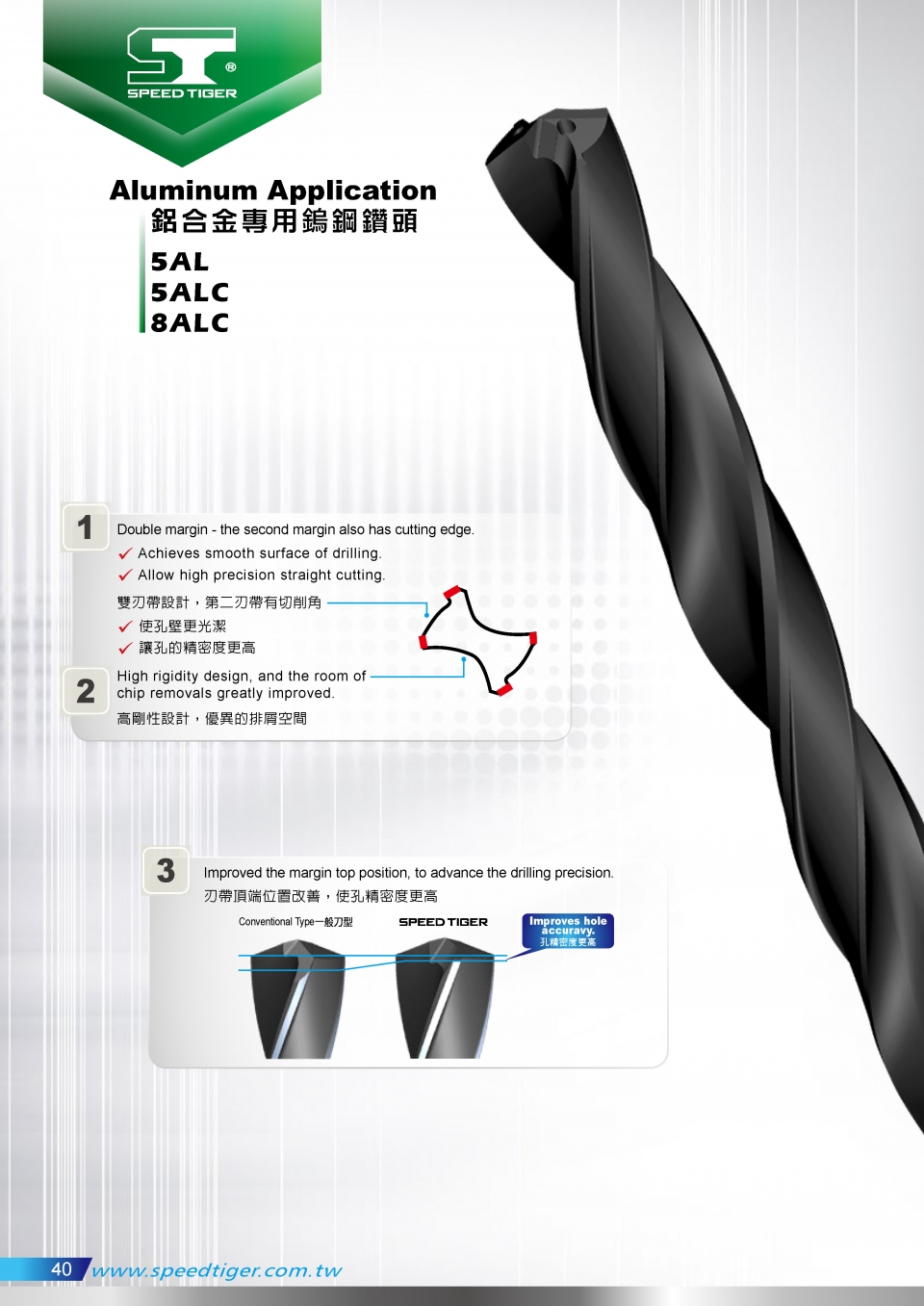

    Carbide Drills_頁面_42



    主要特色 Main Feature:
     1. 雙刃帶設計Double margin- 第二刃帶有切削角 the second margin also has cutting edge.
    - 使孔壁更光潔Achieves smooth surface of drilling.
    - 讓孔的精密度更高Allow high precision straight cutting.
    2. 高剛性設計,優異的排屑空間 High rigidity design, and the room of chip removals greatly improved.
    3. 刃帶頂端位置改善,使孔精密度更高 Improved the margin top position, to advance the drilling precision.

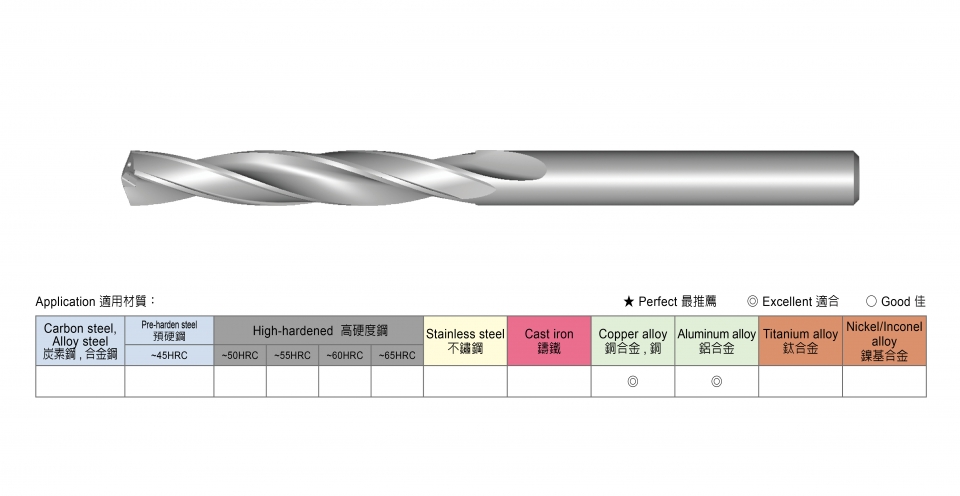

    應用材質 Application
    Carbon steel
    碳素鋼

    Alloy steel
    合金鋼
    Pre-harden steel
    ~45HR
    預硬鋼~45HR
    High-hardened
    ~50HRC
    高度硬鋼~50HRC
    High-hardened
    ~55HRC
    高度硬鋼~55HRC
    High-hardened
    ~60HRC
    高度硬鋼~60HRC
    High-hardened
    ~65HRC
    高度硬鋼~65HRC
    Stainless steel
    不鏽鋼
    Cast iron鑄鐵 Copper ally
    銅合金/銅
    Alumiunm ally
    鋁合金
    Titanium alloy
    Inconel alloy
    鈦合金/ 鎳基合金

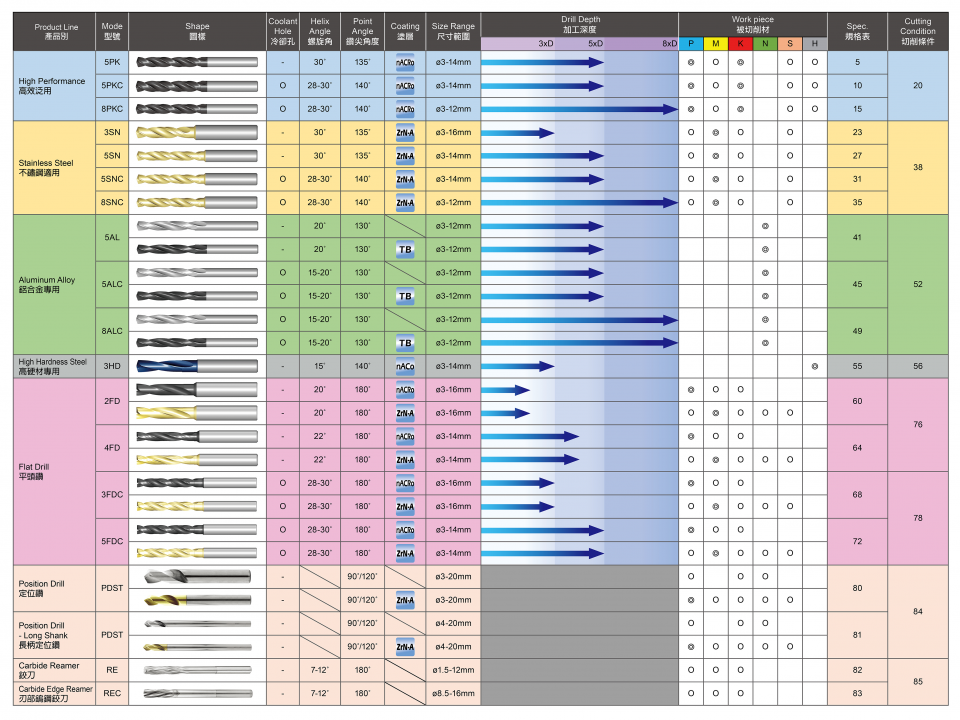

    Carbide Drill Index
