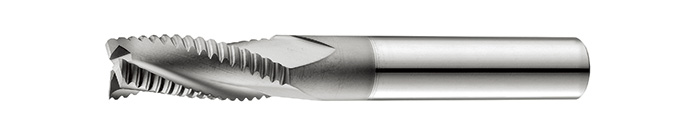

SUXTA 3刃粗精立銑刀

商品編號:SUXTA
RS 超潤滑系列,規格:4mm~20mm,塗層:RS
  • 詳細規格下載  Spec. Download
    切削參數下載 Cutting Condition Download

    產品介紹下載 Series Introduction Download

    RS 超潤滑系列 RS Anti-wear Functional Series
    RS-1
    瞭解RS塗層
    Feature of RS coating

    ▌抗熱 Oxidation start temperature : 1,000℃
    ▌硬度 Hardness: 2,800HV
    ▌摩擦係數 Coefficient of friction : 0.4
    ▌薄膜厚度 Thickness (μ) : 3~ 4 μ
        顏色 Color:銀色 Silver
    ▌乾、濕式切削,加工軟材為一般AlTiN的
        2至3倍壽命。
        Dry and Wet Coolant , Cutting performance of soft
        material improved by 2~3 times than Altin Coating
    CrSiN與CrN差別在何?Difference between CrSiN and CrN
    ▌CrSiN:含Si能夠細化CrN晶粒,甚至可達奈米等級,除具CrN一切優點外更可提高其硬度至
        30~40GPa,且耐熱溫度可達到1,000度。
        CrSiN Coating can improve the CrN grain to be reached  NANO grade. Excepting the all
        advantage of CrN coating, it  drastically improves the hardness to 30~40GPa and Oxidation
        start temperature:1,000℃
    ▌CrN:含Cr對鐵金屬的親和性相當低,大都不與鐵材產生反應,其真正潤滑性使鍍膜擁有不沾粘
        之特性且具備低摩擦係數,唯美中不足其硬度僅有17~20GPa且其耐熱溫度僅為700度。
        CrN coating with Cr element has low affinity with Fe material. It exhibits lower friction than that
        of conventional coating. But the Hardness only 17~20GPa and the Oxidation Start Temperature
        700℃.

    Rs塗層應用在哪?
    Application of RS

    ▌乾式加工 Dry Cutting
    ▌濕式加工 Wet Cutting
    ▌一般加工 General Cutting
    ▌高速加工 High Speed Cutting
    ▌鑄鐵、不鏽鋼、鈦合金、炭素鋼、銅、鋁...等幾乎包含所有被加工材
       Cast Iron, Stainless, Titanium Alloy, Carbon Steel, Copper, Aluminum

    Rs塗層優點
    Advantage of RS

    ▌大幅增加刀具、模具之使用壽命 Improve the tooling and mold life
    ▌增加製造良率 Improve productivity and product quality
    ▌提高工件表面品質 Better Surface finish
    ▌增加脫膜性 Mold Release forces
    ▌提高切削條件 Improved Cutting Condition
