5PK 高效泛用鎢鋼鑽頭

商品編號:5PK
5xD 高效泛用鎢鋼鑽頭,規格:3mm~14mm,塗層:nACRo
  • 高效泛用鎢鋼鑽頭 High Performance Carbide Drills Series
    ►5PK ►5PKC ►8PKC

    ♦尺寸範圍 Size Range: Ø3-14mm
    ♦鑽尖角度 Point Angle: 135º


    詳細規格下載 Spec. Download
    切削參數下載 Cutting Condition Download​

    Carbide Drills_頁面_06

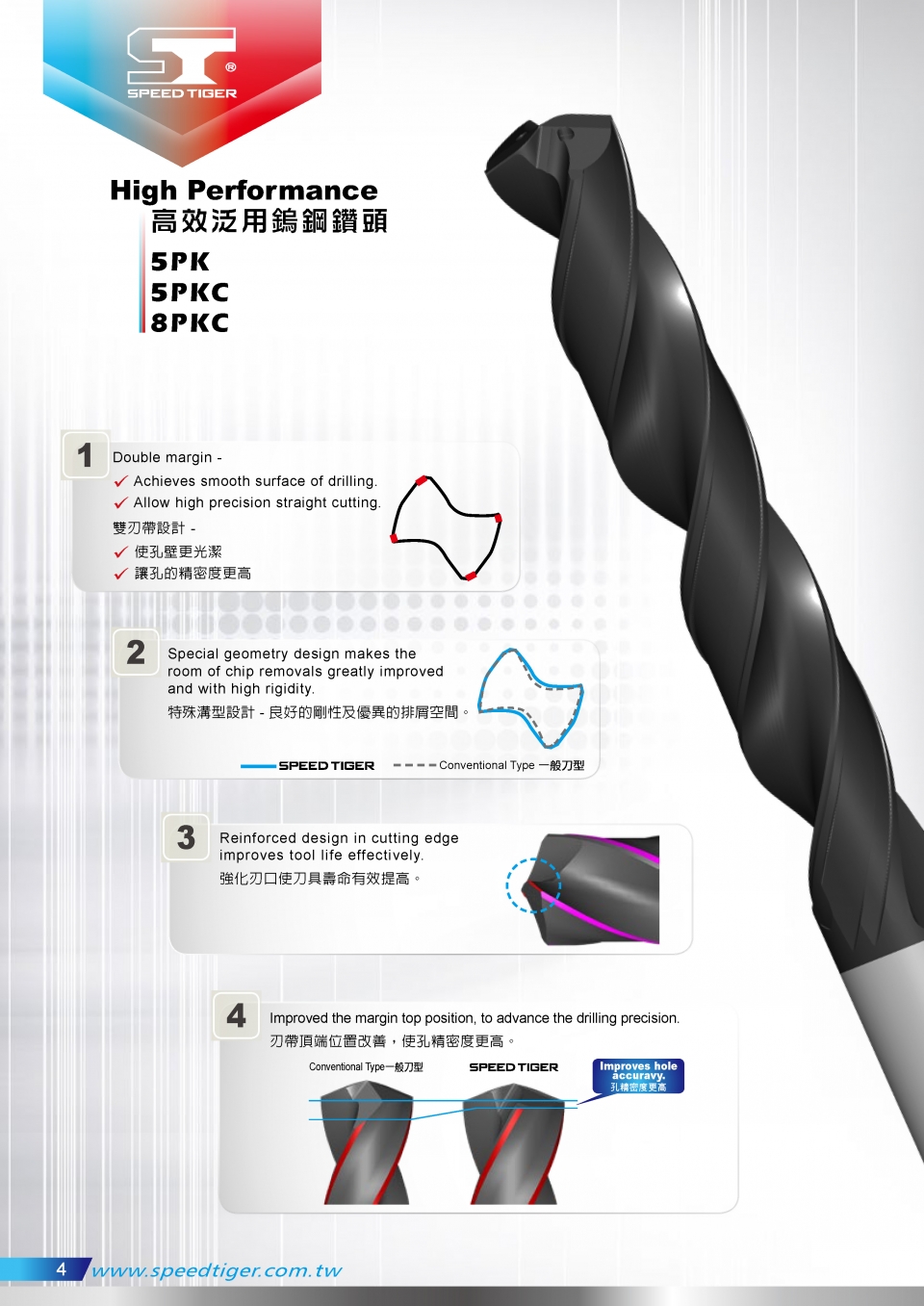

    主要特色 Main Feature:
    1.  雙刃帶設計 Double margin
    - 使孔壁更光潔 Achieves smooth surface of drilling
    - 讓孔的精密度更高 Allow high precision straight cutting
    2. 特殊溝型設計 - 良好的剛性及優異的排屑空間 special geometry design makes the room of chip removals greatly improved and with high rigidity.
    3. 強化刃口使刀具壽命有效提高 Reinforced design in cutting edge improves tool life effectively.
    4. 刃帶頂端位置改善,使孔精密度更高 Improved the margin top position, to advance the drilling precision.

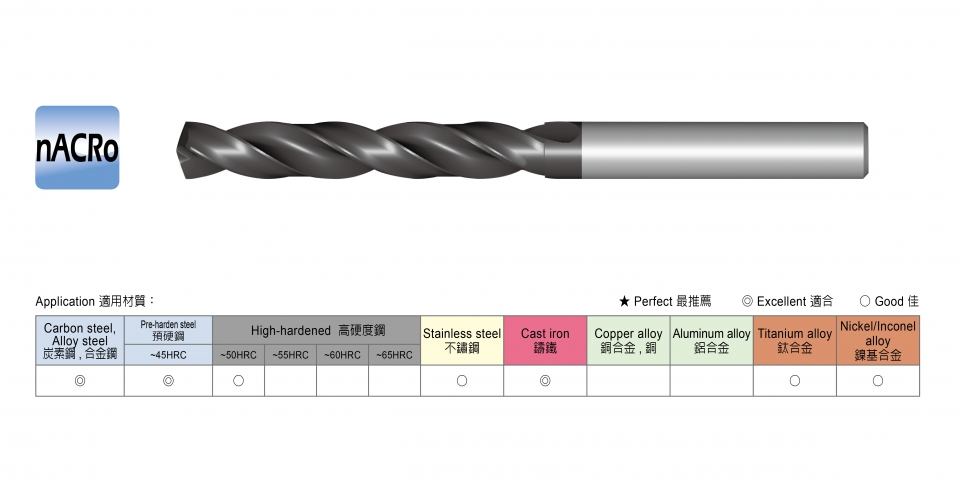

    應用材質 Application
    Carbon steel
    碳素鋼

    Alloy steel
    合金鋼
    Pre-harden steel
    ~45HR
    預硬鋼~45HR
    High-hardened
    ~50HRC
    高度硬鋼~50HRC
    High-hardened
    ~55HRC
    高度硬鋼~55HRC
    High-hardened
    ~60HRC
    高度硬鋼~60HRC
    High-hardened
    ~65HRC
    高度硬鋼~65HRC
    Stainless steel
    不鏽鋼
    Cast iron鑄鐵 Copper ally
    銅合金/銅
    Alumiunm ally
    鋁合金
    Titanium alloy
    Inconel alloy
    鈦合金/ 鎳基合金
     ○          ○


    Carbide Drill Index
