400Plus抗震系列 400 PLUS End Mills Series General Application
適用材料: ~50HRC / 鐵材 / 素碳鋼 / 鑄鐵 / 模具鋼 / 合金鋼 / 鋁合金 / 工具鋼 / 熱處理鋼 / 焊補鋼料
Application: ~HRC60/ Iron, Carbon steel, Cast Iron, Alloy Steel, Tool Steel, Heat treatment Steel, Welding Steel

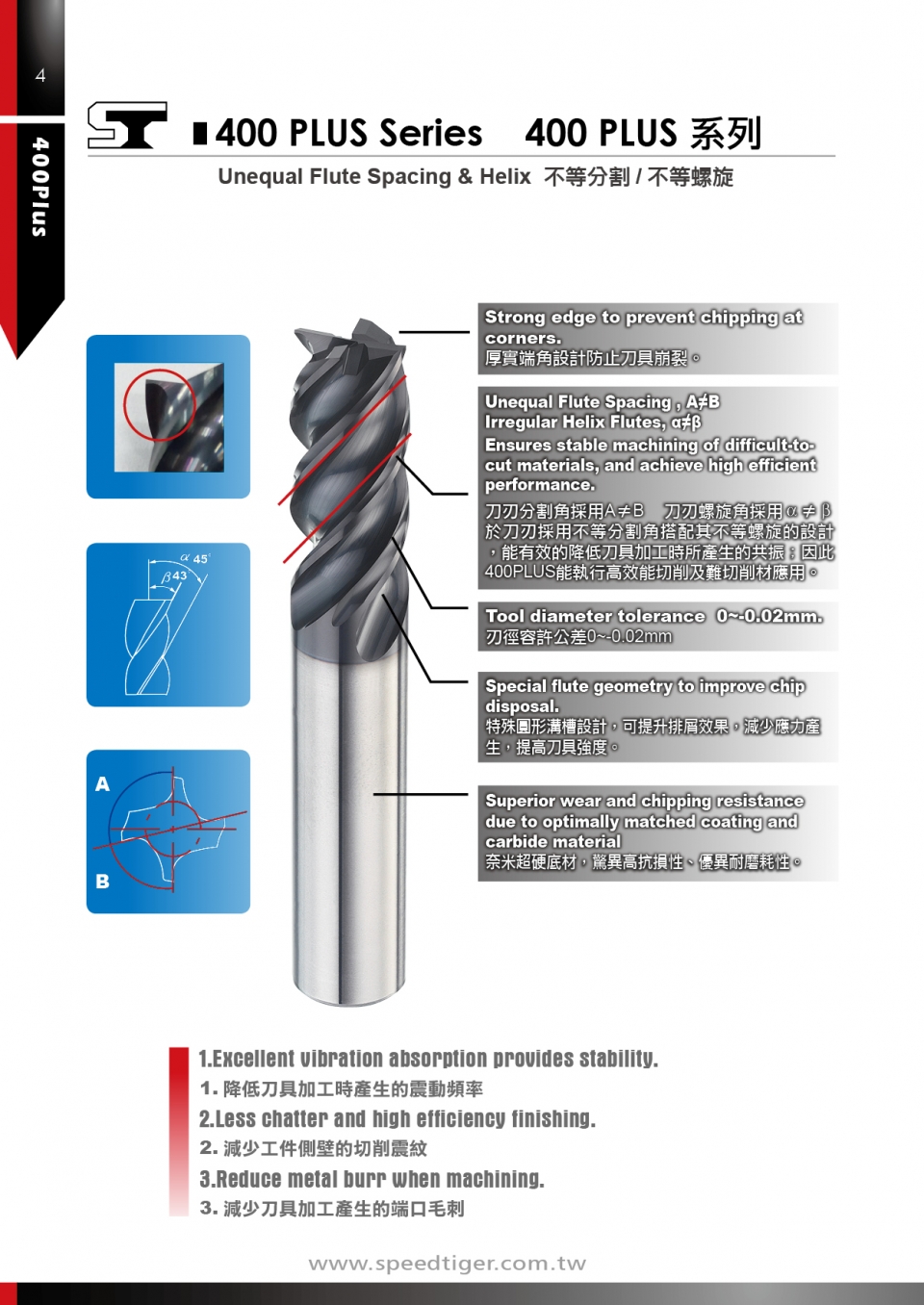

主要特色 Main Feature:- 厚實端角設計防止刀具崩裂
Strong edge to prevent chipping at corners. - 刀刃分割角採用A≠B 刀刃螺旋角採用α≠β於刀刃採用不等分割角搭配其不等螺旋的設計,能有效的降低刀具加工時所產生的共振;因此400PLUS能執行高效能切削及難切削材應用。
Unequal Flute Spacing,A≠B Irregular Helix Flutes, α≠β Ensures stable machining of difficult-to-cut-materials, and achieve high efficient performance. - 刃徑容許公差0~-0.02mm
Tool diameter tolerance 0~-0.02mm. - 特殊圓形溝槽設計,可提升排屑效果,減少應力產生,提高刀具強度。
Special flute geometry to improve chip disposal. - 奈米超硬底材,驚異高抗損性、優異耐磨耗性。

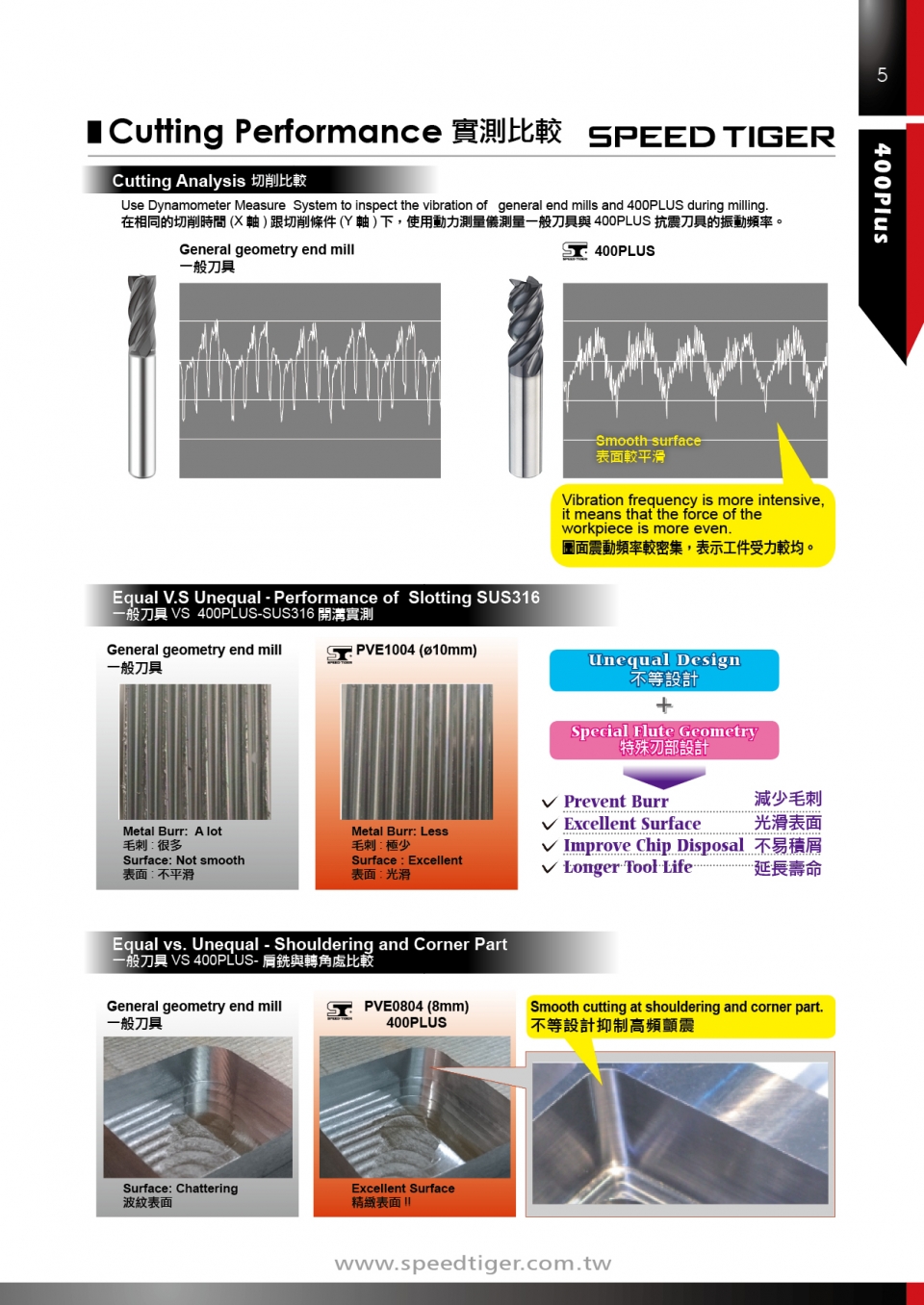

Superior wear and chipping resistance due to optimally matched coating and carbide material.✓ Exellent vibrant absorption provides stability.
Excellent vibration absorption provides stability.
✓ 減少工件側壁的切削震紋
Less chatter and high efficiency finishing.
✓ 減少刀具加工產生的端口毛刺
Reduce metal burr when machining.
不等設計 Unequal design+特殊刃部設計 Special flute geometry :- 減少毛刺 Prevent Burr
- 光滑表面 Excellent Surface
- 不易積屑 Improve Chip Disposal
- 延長壽命 Longer Tool Life

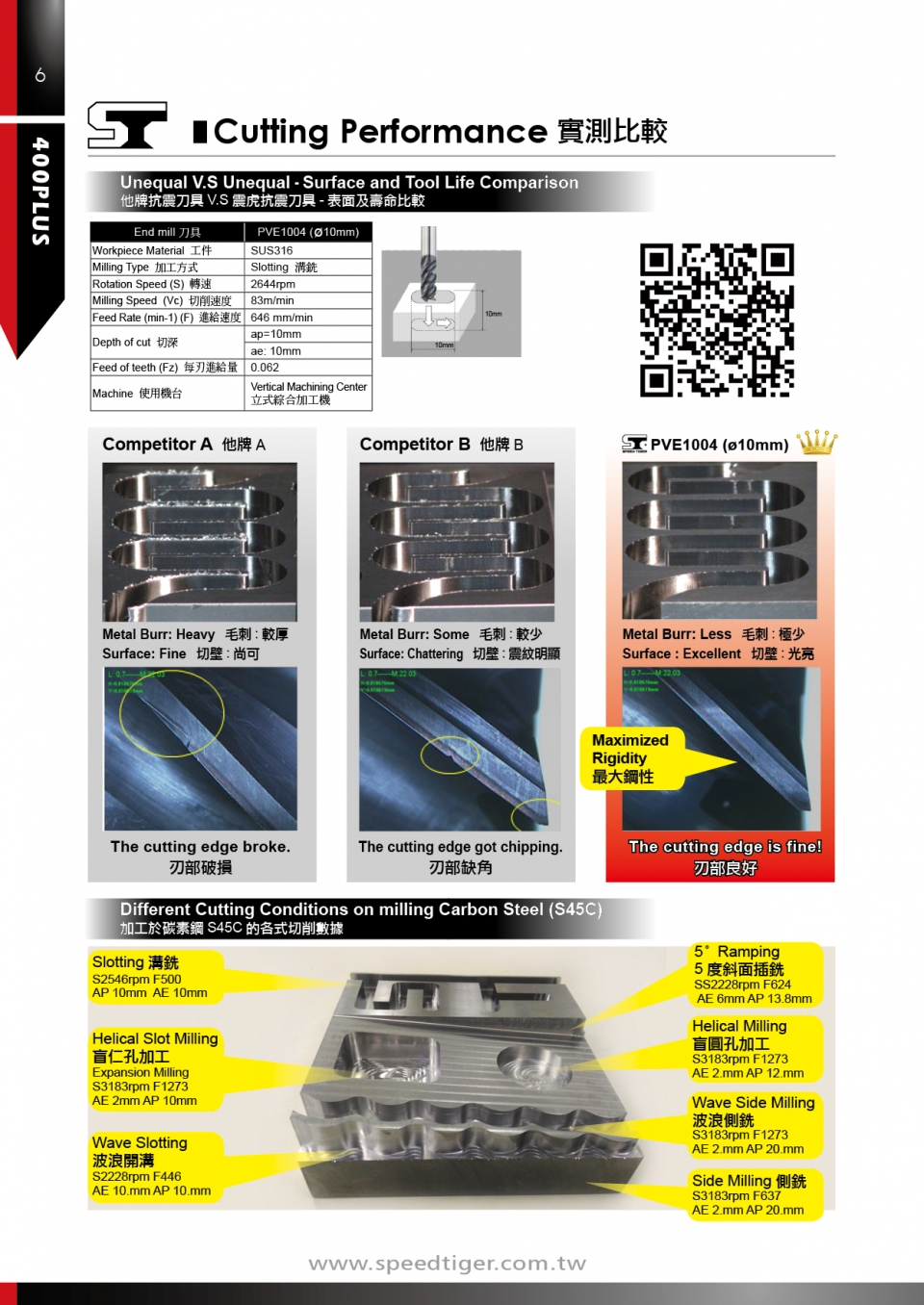

加工於碳素鋼S45C的各式切削數據
Different Cutting Condition on milling Carbon Seel (S45C)Slotting- 溝銑 Slotting
- 盲仁孔加工 Helical Slot Milling
- 波浪開溝 Wave Slotting
- 側銑 Side Milling
- 5度斜面插銑 5°Ramping
- 盲圓孔加工 Helical Milling
- 波浪側銑 Wave Side Milling
- 厚實端角設計防止刀具崩裂
